all that's buzzing: VHDL program code truth table logic circuit for 2 bit comparator

library ieee;

use ieee.std_logic_1164.all;

entity compare2bit is

port( num1: in std_logic_vector(1 downto 0);

num2: in std_logic_vector(1 downto 0);

less: out std_logic;

equal: out std_logic;

greater: out std_logic

);

end compare2bit;

architecture behavioral of compare2bit is

begin

process(num1,num2)

begin

if (num1>num2) then

less<='0';

equal<='0';

greater<='1';

elsif (num1<num2) then

less<='1';

equal<='0';

greater<='0';

else

less<='0';

equal<='1';

greater<='0';

end if;

end process;

end behavioral;

2 bit comparator level 2 Xilinx circuit

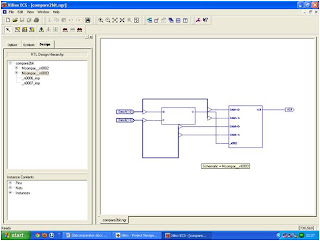

2 bit comparator level 3 Xilinx circuit

Truth tablet for 2 bit comparator
